Product Details:
Payment & Shipping Terms:
|
| Type:: | Packing Machine | Application: | Food,daily Chemical Etc |
|---|---|---|---|
| Automatic Grade:: | Automatic | Dimension(L*W*H):: | 2000*1200*2400MM |
| Additional Function: | Hanging Hole,special Shape | Bag Shape:: | Zipper Bag/doypack |
| High Light: | automatic packaging machine,packing machine for food products |
||

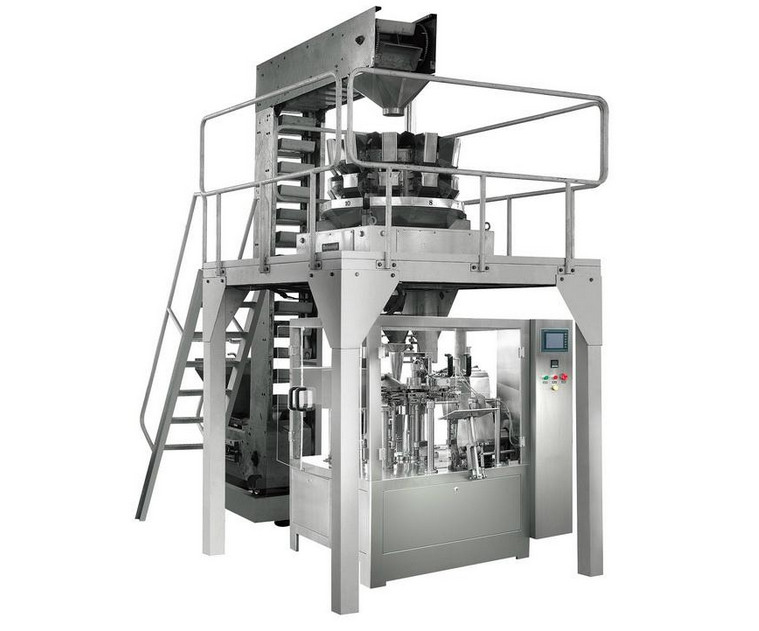

Rotary Liquid Full Automated Packaging Machine for Microwave Popcorn
Performance and features :

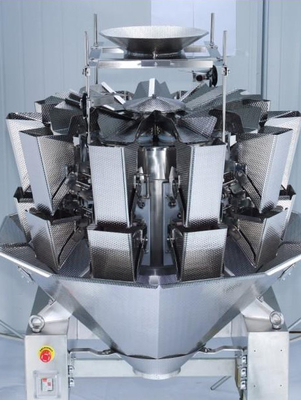

, Full automatic 8-staion intermittent rotay performed bags dispensing, opening and closing machine combines with automatic combination weigh scale filler, overhaed work platform and Z-elevator bulk feeder.
2, Safety guard protected for high speed and consistent production.
3, Heavy duty components and parts are selected for machine durability.
4, Hygienic construction and easy cleaning. Operator friendly design touch-screen control system.
5, Versatile in design, easy to link up with other down stream packaging equipment, such as liquid filler, powder filller, multiheads weigher, metal detector, checkweighter, case sealer etc.
6, Innovative and practical solution at reasonable costs.
7, Dust control and extractor system on special request.
Applications for this kind of packaging machines
Liquid: Rice wine, soy sauce, ricevinegar, fruit juice, beverages, milk detergent and so on
Typical Flow Chart
1, Giving bag
2, Hot Foil Coding
3, Bags Opening
4, Fill one consolidate
5, Fill two
6, Heat sealing one
7, Heat sealing two
8, Forming and output product
Technical parameters :
| Pouch material | Laminated filmPEPP etc. |
| Pouch pattern | Stand-up,flat |
| Pouch size | W:100-210mm L:100-350mm (could be customized to your measure) |
| Filling range | 10-1000g (could be customized to your measure) |
| Speed | 10-60pouches/min(The speed depends on the product status and filling weight)) |
| Voltage | 380V 3phase 50HZ/60HZ |
| Compress air | 0.6m 3 /min ( Supplied by user) |
