380V 50Hz Electric Auto Laminator Machine , High Speed roll laminating machine

Quick Details

• Type: Other
• Condition: New
• Application: Food, Beverage, Commodity, Medical, Chemical, Apparel, Textiles
• Packaging Type: Stand-up Pouch, Bags, Film, Foil, Pouch
• Packaging Material: Plastic, Paper
• Automatic Grade: Automatic
• Driven Type: Electric
• Voltage: 380V 50Hz
• Power: 5.5kw
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: SL
• Model Number: SLFQ-L
• Weight: 1800kgs
• Dimension(L*W*H): 2600*1110*1400MM
• Certification: CE
• After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Specifications

Full Automatic Slitting and Rewinding Machine For BOPP/PET/PVC Shrink Film/Laminated Film

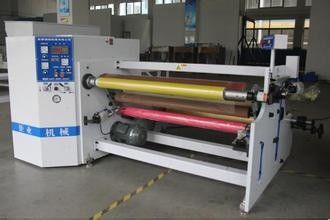

SLFQ-L Full Automatic Slitting and Rewinding Machine For BOPP/PET/PVC Shrink Film/Laminated Film

Application:

This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP,PE, CPE, PVC, aluminum foil and paper, etc. and can cut edge, separate and cut material according to different requirements during production


Performance and Features:

1.The machine is a kind of vertical separating and cutting machine, rolling and releasing can be in front of or at the back of the machine.

2. The main motor adopts the frequency inverter control

3. Independent master control panel, more flexible and even easier operation.
4. Automatic EPC for unwinding, photocell is suitable for tracking the edge and color of transparent material.
5. Equipped with magnetic powder brake for unwinding tension control
6. Magnetic clutch control for rewinding tension control

7.Unwinding auto tension with load cell device optional.
8. Waste edge blowing tunnel
9. Automatic meter counting of material moving length
