Product Details:
Payment & Shipping Terms:
|
| Material: | Equipments Are Made Of Stainless Steel | Design: | Equipment Can Be Designed For Customers |
|---|---|---|---|
| Weighter: | Combined With 6 Weighter | Application: | Food, Medical, Chemical |
| Conveyor: | Z Type | Power: | 3 KW |
| High Light: | food packaging equipment,food packaging machinery |
||

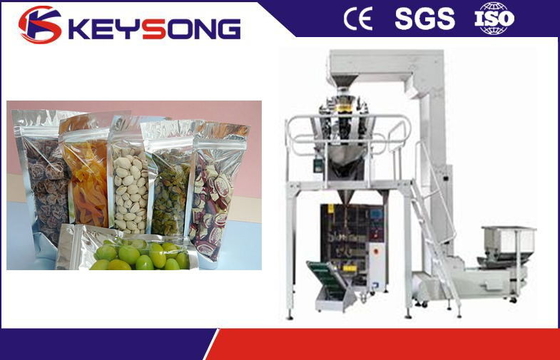

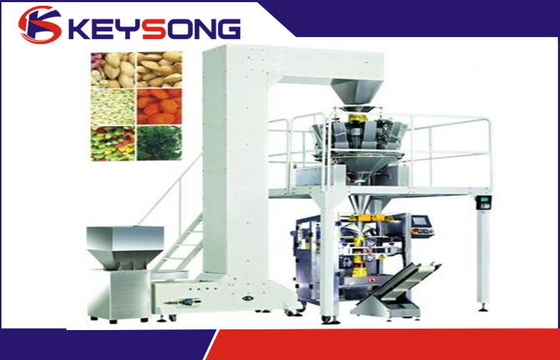

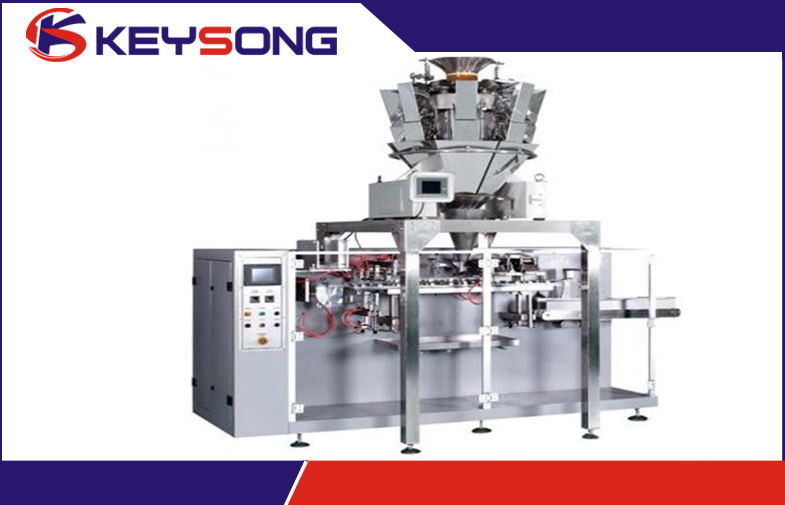

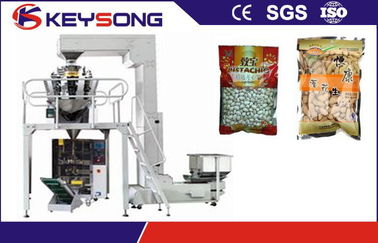

ISO9001 Nuts Filling Packing Machine , Automated Food Packaging
Quick Details
|
Type: |
Other, Packing Machine |
Condition: |
New |
Application: |
Food, Commodity, Medical, Chemical, Machinery & Hardware |
|
Packaging Type: |
Case |
Packaging Material: |
Wood |
Automatic Grade: |
Automatic |
|
Driven Type: |
Electric |
Voltage: |
220V |
Power: |
2.4KW |
|
optional: |
feeding line |
After-sales Service Provided: |
Engineers available to service machinery overseas |
stainless steel: |
white |
Application
Suitable for packing granules, pieces and strips such as biscuits, crispy rice, peanuts, melon seeds, potato chips and prawn crackers etc.
Main performance and structure features
|
Complete set of this machine: |
|
1.KS-620 principal machine |
|
2.Six heads combined scale |
|
3.Z type material conveyor |
|
4.Vibrating feeding machine |
|
5.Supporting platform |
|
4.Finished product conveyor |
Function and characteristics:
1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
3. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
5. Horizontal conveyor style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.
6. Use the plastic bearing, don’t need put on oil, less pollution.
7. Use no oil vacuum pump, avoid polluting the environment in the production.
8. The opening zipper framework is special in the feature of zipper bag, it can avoid distortion or destroy when open the zipper.
Technical Parameters
|
Model |
KS-620 |
|
Working position |
six-working position |
|
Pouch material |
Laminated film |
|
Pouch pattern |
Stand-up pouch, flat pouch |
|
Pouch size |
W:100-210mm L:100-350mm |
|
Speed |
≤35pouches/min (The speed depends on the product status and filling weight) |
|
Voltage |
380V 3phase 50HZ/60HZ |
|
Total power |
3KW |
|
Compress air |
0.6m3/min(supply by user) |
Our services
Installation:
1. We provide videos and instruction manual to show the process of installation.
2. We provide training for installation for free in our factory.
3. We can send technician to buyer's factory to install the machine and provide training service.
After Sales Service:
1. One year quality warranty and free lifetime technique support.
2. Free spare parts would be supplied if machine broken within warranty period except the easily damaged parts.
3. After the warranty period, the spare parts for replacement are offered based on certain charge.
Installation:
1. We provide videos and instruction manual to show the process of installation.
2. We provide training for installation for free in our factory.
3. We can send technician to buyer's factory to install the machine and provide training service.
