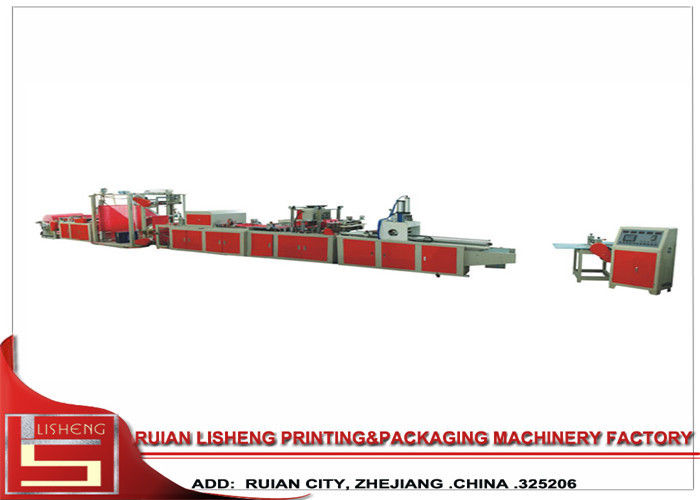

multifunctional non woven fabric bag making machine for Shopping Bag

multifunctional non woven fabric bag making machine for Shopping Bag
multifunctional non woven fabric bag making machine for Shopping Bag multifunctional non woven fabric bag making machine for Shopping Bag multifunctional non woven fabric bag making machine for Shopping Bag

Large Image :  multifunctional non woven fabric bag making machine for Shopping Bag

Product Details:
Place of Origin: CHINA
Brand Name: LS
Certification: CE
Model Number: HB
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wooden packing
Delivery Time: Within 30 working days
Supply Ability: 20sets/month
Detailed Product Description
Material: Non Woven Fabric Bag-making Speed: 40-110pcs/min
Servo Motor: 1.5kw Main Motor: 0.75kw
Motor For EPC: 0.1kw
High Light:

ultrasonic non woven bag making machine

,

non woven fabric bag making machine



multifunctional non woven fabric bag making machine for Shopping Bag


Quick Detail:

Condition: New
Material: Non woven bag
Machine type: Bag forming machine
Bag type: kinds of no woven bag
Capacity: 40-110 pcs/min
Servo motor: 1.5kw
Warranty: one year
Computerized: Yes
Certification: CE


Description:

1.Machine Use Industrial Control Level Plc Mitsubishi Japanese

2.Touch Screen Use Mitsubishi Japanese
3. Transmission Are Drived And Controlled By Yaskawa Japanese
4.Servo Motor For Feeding The Material By Yaskawa Japanese
5.Main Motor Siemens
6.Unwinder Equiped With Magnetic Tension
7.Unwinder Equiped With Two Photocell For Tracking ,Sensor,Use German Sick Brand
8.Edge Guider For Unwinding Unit
9. Air Cylinder Loader Material
10.Omron Brand Temperature Control
11. Schneider Brand Switch
12. Air Component Use Taiwan Airtack
13. Bearing Use Japanese NSK Brand



Specifications:


Bag making type

HB
Box type(three side gusetting)
Vest type
D-cut type, shoes bag
Rope though type
Flat bag,
Loop handle bag type

Tension control

2.5kg magnetic brake

Raw material

nonwoven farbic

Capacity

40-110pcs/min

Bag making width

100-500mm

Bag making length

120-560mm

Weight of the cloth

20-130GSM

Diameter of material

900*1200mm

Servo motor

1.5kw

Main motor

0.75kw

Electric heat

0.6kw

Motor for EPC

0.1kw

Ultrasonic

2.6kw

Feeding motor

0.4kw

Gross power

15kw

Frequency and Voltage

50HZ 220V

Dimension

11*1.5*1.8m




Application:


 Suitable for non-woven fabric material. It can make vest bag(tshirt bag), flat bag, side gusset bag, bottom gusset bag,  handle bag and so on. Used widly in all kinds of area.

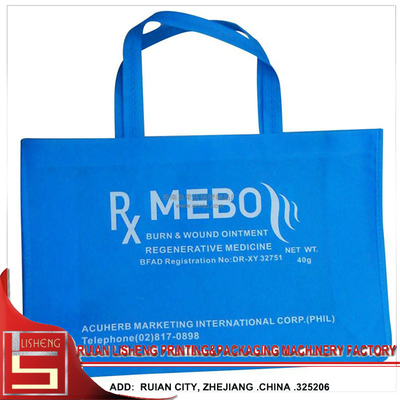

Our Product Sample Show:
