Product Details:
Payment & Shipping Terms:
|
| Type:: | Packing Machine | Application: | Food,daily Chemical Etc |
|---|---|---|---|
| Automatic Grade:: | Automatic | Dimension(L*W*H):: | 2000*1200*2400MM |
| Additional Function: | Hanging Hole,special Shape | Bag Shape:: | Zipper Bag/doypack |
| High Light: | automatic packaging machine,packing machine for food products |
||

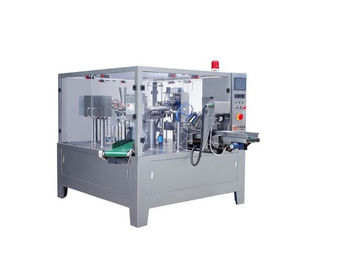

Powder Liquid Doypack Packing Machine , Stand Up Pouch Packing Machine
Performance and features :
It has wide range of packaging, by selecting different survey meter, can be applied to the liquid particle powder paste irregular shape product.
l High quality and performance, the frame is made of 150mm thickness 304# stainless steel.
l Good stable and also good machine exterior,own extensive range in filling productions
l Easy operate by touch-sensitive screen (Weinview, Taiwan), PLC (OMRON, Japan) and electric control system
l Friendly man-machine interface
l Speed can be adjusted by frequency conversion within the range.
l Perfect sealing system,Good safety secure and so on
l No bag – no filling- no sealing, machine alarm Bag opening miss- no filling-no sealing, machine alarm
l Machine stop or alarm when the air pressure is abnormal
l Error position display at the control panel.Control panel locate on the right side top of the machine
l Outside of the machine and all the parts which touch production all made by stainless steel.
l There are several safety doors made by aluminum Profile Frame.The doors are equipped with safety proximity sensors
l Machine surface can be washed by water and brushed by cloth
Technical parameters :
|
Key word |
Rotary Powder Packing Machine |
|
Type |
GD8-200B |
|
Air consumption |
0.2m3/min |
|
Bag length |
100-300mm |
|
Bag width |
100-200mm |
|
Packing speed |
30-50bags/min |
|
Power supply |
220V 2KW |
|
Dimension |
1420 x2220x1315mm |
|
Machine Net Weight |
1400kg |
|
Device |
Screw Elevator, Auger Filler. |
|
Application |
Apparel, Beverage packing machine, Chemical, Foodpacking machine,rice packing machine Machinery & Hardware, Textiles |
